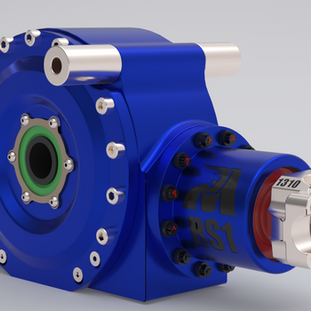

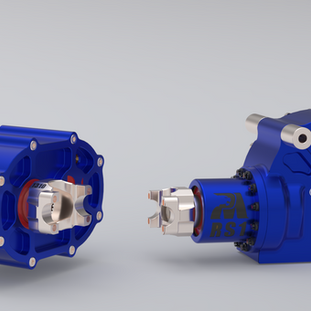

GAME CHANGER - POLARIS RS1 BILLET FRONT DIFF

​

• MASSIVE RING GEAR

• Tapered Roller Bearings

• BILLET CASE

• FITS OEM CHASSIS

• 1310 Yoke

• Internal Oil Pump - Feeds oil to pinion bearings

• 4140 Chrome Moly Carrier

• Adjustable Backlash

• Adjustable Bearing Preload

• Pinion Crush Tube Eliminator (Solid Spacer + Shims)

• NOT A SINGLE Polaris OEM Component used

• Designed and CNC Machined using high quality MOTORSPORT COMPONENTS

• This is NOT an OEM diff upgraded with a few chrome moly parts, this is a much larger billet diff.

• Race Proven Design (Our Can Am X3 Diff uses 80% of the same components)

• SPOOL and AUTO Locker Options

• Oil Cooler Ports (Endurance Racing) Standard

• Mechanically Retained Oil Seals (Can run without a vent - IP68 Submersible)

​

While the RS1 Diff is a NEW product, this differential uses many similar components to our CAN AM X3 and MAVR Billet Front Diffs, with a ratio to match the Polaris Rear Diff



First Production (Spool) Planned for Jan 2026 - Accepting Pre Orders Mid December 2025.

​

Target Price: Spool $4,500 USD, Auto Locker (Mid 2026) $5,500 USD

​
