POLARIS PROR DIFF UPGRADES
PROTECT YOUR PROR DIFF
POLARIS PROR DIFF ISSUES
-
The PROR OEM Diff Case is manufactured from super thin cast aluminium, allowing the side cover to "FLEX" under heavy loads and hard launches.
-
Big HP Cars will cause the thin OEM Cast Aluminium Side Cover to "crack/explode", allowing your ring and pinion teeth to separate, and BOOM, your diff becomes scrap metal in seconds.

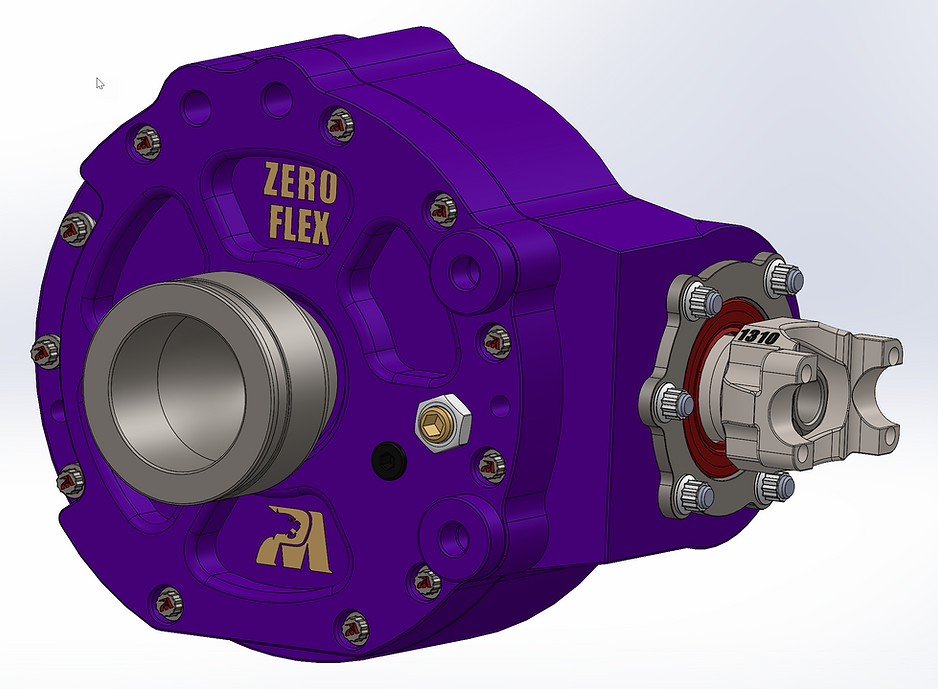

Our "ZERO FLEX®" Billet Side Cover is 220% thicker than the OEM Side Cover
-
Reduces Case "Flex"
-
6061 T6 Heat Treated Side Cover
-
220% Thicker Material to support the carrier bearing
-
400% Stronger than OEM Side Cover
-
Reduces Ring Gear Deflection
-
Reduces Ring/Pinion
-
Load Bolt to reduce Ring Gear Deflection
-
Prevents the side cover "exploding" under load/launches
STAGE 1 - ZERO FLEX BILLET SIDE COVER
STAGE 2 - ZERO FLEX® BILLET CASE + SIDE COVER
STAGE 3 - PROR MEGA DIFF
-
LARGER GEARSMASSIVE FORGED RING GEAR
-
Front Ratio Perfectly Matches the Rear Diff Ratio (Can drive in 4X4 on the highway)
-
NOT A SINGLE Polaris OEM Component used
-
Not just a shiny billet case with OEM gearsHuge Tapered Roller Bearings
-
BILLET CASE
-
Fits OEM Chassis Mounts
-
Additional Lower Chassis Mounts
-
1310 Yoke (Required driveshaft to be shortened)
-
4140 Chrome Moly Carrier
-
Adjustable BacklashAdjustable Bearing Preload
-
Pinion Crush Tube Eliminator (Solid Spacer + Shims)
-
Designed and CNC Machined using high quality MOTORSPORT COMPONENTS
-
This is NOT an OEM diff upgraded with a few chrome moly parts - this is a much larger billet diff.Race Proven Design and Ring Gear SetSPOOL (100% LOCKED at all times)
NOTES:Import tariffs may apply in most countries, including USA
