Flat Pack Kits 2026 Landscape.png

  • 2 Seat - 4X4 - IFS - IRS

  • Mid Mounted V8 Engine

  • Quick Change Transfer Case​​

  • Ultra Narrow Diffs with Internal CV Joints

  • Ultra Light Hubs with Internal CV Joints

    • Internal CV Joints = Longer Axles​

    • Longer Axles = More Wheel Travel

  • Tire Deflation/Inflation

  • 30 Inches Wheel Travel

  • 33 Inch Ground Clearance

  • Fox Internal Bypass Shocks

  • 37" Tires

  • 6 Speed Sequential or Automatic

  • 92" Track - 125" Wheelbase

  • 4 Piston Wilwood Calipers

  • 30 Spline Axles

  • 45 Degree CV Angles

  • 30 Degrees Steering

Predator Lancelin Sept 2023
PREDATOR V8 4X4 SXS BUGGY - VEHICLE OVERVIEW

PAY AS YOU GO - SPREAD PAYMENTS OVER TIME

Predator V8 8 Speed 8HP

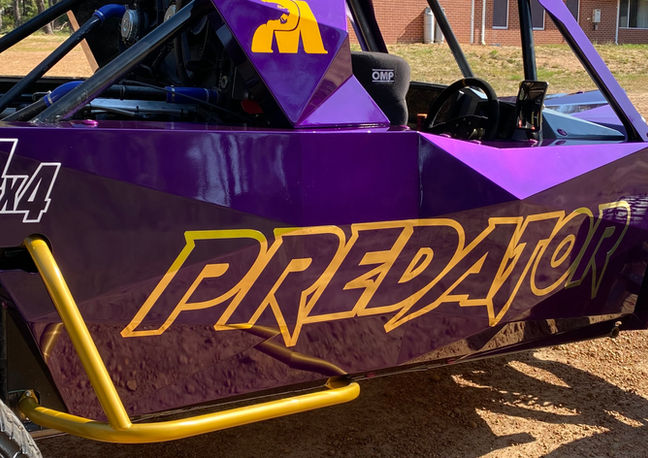

PREDATOR

PREDATOR

Holinger + belll Housing + Chev LS + Tra

​

ENGINE - TRANSMISSION - TRANSFER CASE
​

  • Engine Options

    • V6-V8, Ford/Chev

  • Transmission Options​

    • Holinger 6 Speed Sequential​

    • Sadev 6 Speed Sequential

    • 6L90E Paddle Shift Auto

  • Quick Change Transfer Case​

    • 60 Ratios​

    • Change Final Drive Ratio in 2-3 minutes

Predator V8 4X4 Buggy - Flat Pack Kits

​

TUBULAR SPACE FRAME CHASSIS​
​

  • Race Legal

    • BITD​

    • SCORE

    • CAMS

    • FIA

  • Material Options​

    • ​4130 Chrome Moly

    • DOM, CDS

Build Your Own V8 4X4 Buggy

​

ULTRA NARROW BILLET DIFFS​
​

  • Internal CV Joints

    • Longer Axles​

    • More Wheel Travel

    • More Ground Clearance

  • 6.0" Tapered Roller Bearings​

  • Oil Feed Pinion Bearings

  • Remote Oil Cooler

  • 30 Spline Axles

  • 35 Degree CV Joint Angle

Proformance Motorsport Predator Flat Pack Billet Hub with Air Inflation/Deflation CTIS

​

BILLET HUBS - INTERNAL CV JOINTS
​

  • Internal CV Joints

    • Longer Axles​

    • More Wheel Travel

    • More Ground Clearance

  • Tire Deflation/Inflation

  • 6.0" Tapered Roller Bearings​

  • 30 Spline Axles

  • 35 Degree CV Joint Angle

  • 290mm Floating Disc

  • Billet 4 Piston Caliper

  • Double Shear Heim Joints

  • 30 Degree Steering Angle

V8 4X4 Predator Off Road Racing Car - 30"Travel - All Wheel Drive

​

INDEPENDENT SUSPENSION​
​

  • IFS - IRS

  • Fox Internal Bypass Shocks

    • 30" Rear Travel​

    • 30" Front Travel

  • Adjustable High/Low Speed Rebound​

  • Adjustable High/Low Speed Compression

  • Teflon Lined Chrome Moly FK Rod Ends

  • Remote Billet Reservoirs

Predator V8 Quick Change Transfer Case - Ultimate V8 SXS Flat Pack Buggy

​

QUICK CHANGE TRANSFER CASE
​

  • Change Final Drive without changing diff gears

  • 60 Ratios Available

  • Inbuilt Under-drive

    • Allows Larger/Stronger Diff Pinion

    • Less Diff Failures

  • Reversed Gearbox Drive​

    • Mid Engine Reverse Rotation​

Predator V8 Buggy - 6 Speed Sequential

​

BUILT TO PERFORM - NOT BUILT IN CHINA
​

  • Billet 6061 T6 Heat Treated Components

    • Billet Diffs

    • Billet Hubs

    • Billet Transfer Case

    • Billet Steering Rack

  • 4130 Chrome Moly Chassis

  • Cad Modeled - CNC Machined

  • No Rubber Belts

  • Race Proven Technology

  • High Quality Motorsport Components

  • 90% Less maintenance than OEM SXS's

​

WHAT'S NOT INCLUDED IN THE KIT - WHAT ELSE DO I NEED ?
Predator V8 4X4 SXS - What else do I need
